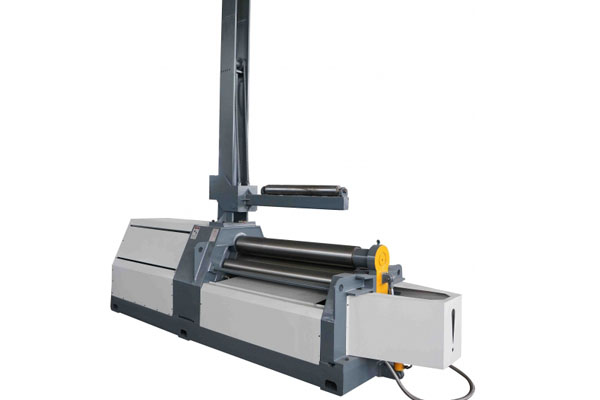

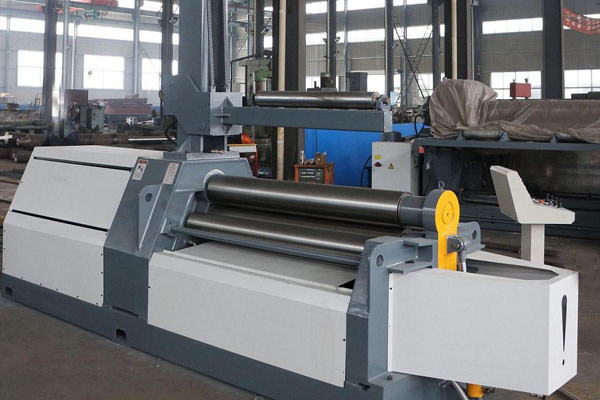

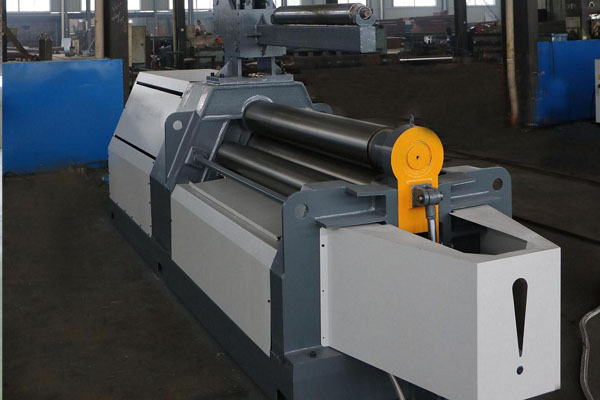

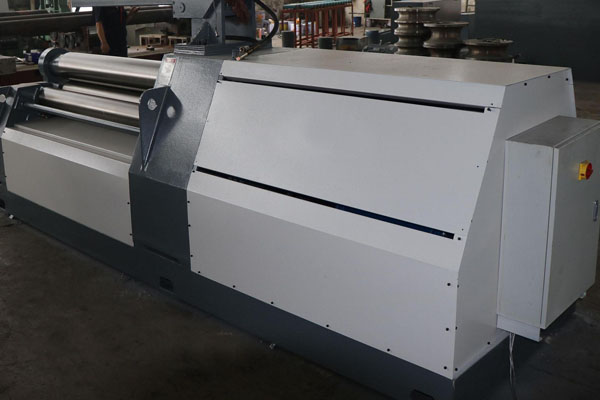

T4-8T1500W Plate Bending Machine
五福彩票T4-8T1500W Plate Bending Machine is a type of double pinch plate bending machine. Each of the rollers is separate driven. Rollers rectilinear slide ways coated with antifriction material, no maintenance, suit to heavy duty loading, smooth and stable positioning. Spherical roller bearings are equipped on the rollers. All of the rollers in alloyed steel are induction hardening and heat treatment. All of the rollers will be grinded and polished after induction hardening treatment.
Parameters
五福彩票T4-8T1500W Plate Bending Machine Specification | ||||
Max. | 五福彩票Thk. of bending plate | (mm) | 8 | |
五福彩票Thk. of pre-bending | 6 | |||
五福彩票Width of bending plate | 1500 | |||
五福彩票Effective length of the rollers | (mm) | 1550 | ||
五福彩票Yield Strength of Plate | (MPa) | 235 | ||
五福彩票Min. reel dia. with max.size | (mm) | 400 | ||
Diameter of Roller | Upper | (mm) | 180 | |
Bottom | 170 | |||
Side | 150 | |||
Roller | Material | 42CrMo | ||
Hardness | (HB) | 240-286 | ||
Induction Hardened Roll | YES | |||
五福彩票Roll Profile | crown | |||
五福彩票Lifting Mode | hydraulic | |||
Lifting Synchronous Precise/Accuracy | ±(mm) | 0.2 | ||
All Bearing Brand | Self aligning roller bearing | |||
Conical Bending Device | YES | |||
五福彩票Driving Mode | Motor + reducer | |||
Control System | 五福彩票Control Mode | NC | ||
五福彩票Display of position & displacement | LCD | |||
PLC | OMRON | |||
Electrical Part System | SIEMNENS | |||
五福彩票Plate Bending Speed | (m/min) | about 3.5 | ||
五福彩票Descending/Ascending Speed of bottom roller | (mm/min) | About 160 | ||
Descending/Ascending Speed of side roller | (mm/min) | About 260 | ||
五福彩票Main Power Motor | (KW) | 5,5 | ||
五福彩票Hydraulic System | Max. Working Pressure | (MPa) | 25 | |
Valve | YUKEN | |||
Seal | VALQUE | |||
五福彩票Electrical & Hydraulic Protection Againts Overload | YES | |||
Construction Steel Material | Q235 | |||
Side Support for Big Sheet Metal Diameters | optional | |||
五福彩票Central Support for Big sheet Metal Diameters | optional | |||
Feeding Table | optional | |||
Oil Cooler System | optiona | |||
Features:
--heady duty linear sliding guides mounted on the uprights of the machine for lower roller and side rollers translation
--electronic parallelism control system
五福彩票--rollers synchronization and balancing control fully electronically controlled
五福彩票--side rollers and bottom rollers variable tilting controlled, positive or negative
--conical facility
--rollers driving by independent hydraulic motors
--anti-friction material in sliding area
--instantaneous brake for rollers rotation for high safety
--reversal side hydraulic driving
--Mobile control panel station, with low voltage control
--Mobile control push-buttons, convenience for operator
Optional:
五福彩票--vertical plate supporting device
五福彩票--side plate supporting device
